Business Intelligence

Combination of technologies like

Data Warehousing (DW)
On-Line Analytical Processing (OLAP)
Data Mining (DM)
Data Visualization (VIS)
Decision Analysis (what-if)
Customer Relationship Management (CRM)

Operational Data

Presents a dynamic view of the business
Must be kept up-to-date and current at all times
Updated by transactions entered by data-entry operators or specially trained end users Is maintained in detail
Utilization is predictable. Systems can be optimized for projected workloads
High volume of transactions, each of which affects a small portion of the data
Users do not need to understand data structures
Functional orientation

Analytical Data

Presents a static view of the business
End-user access is usually read-only
More concerned with summary information
Usage is unpredictable in terms of depth of information needed by the user
Smaller number of queries, each of which may access large amounts of data
Users need to understand the structure of the data (and business rules) to draw meaningful conclusions from the data
Subject -orientation

Database

Broadly classified into

OLTP (Online Transactional Processing) DB
OLAP (Online Analytical Processing) DB

OLAP

Slicing and dicing of data is called as Online Analytical Processing (OLAP). OLAP only serves the needs of data warehousing than OLTP.
OLAP systems allow ad hoc processing and support access to data over time periods.
OLAP systems are the aggregation, transformation, integration and historical collection of OLTP data from one or more systems.
Typical OLAP operations:

Roll up (drill up)

summarize data by climbing hierarchy or by dimension reduction.

Drill down(roll down)

from higher level summary to lower level summary or detailed data, or
introducing new dimensions

Slice and dice

project and select

Pivot (rotate)

reorient the cube, visualization, 3D to series of 2D planes.

OLAP vs OLTP

Slno	OLTP	OLAP
1.	Transaction Oriented	Decision Oriented (Reports)
2.	Complex data model (fully normalized)	Simple data model (multidimensional/de-normalized)
3.	Smaller data volume (few historical data)	Larger data volumes (collection of historical data)
4.	Many, ”small” queries	Fewer, but ”bigger” queries
5.	Frequent updates	Frequent reads, in-frequent updates (daily)
6.	Huge no. of users(clerks).	Only few users(Management Personnel)

Objective of Data Warehouse

The primary purpose of a data warehouse is to provide easy access to specially prepared data that can be used with decision support applications, such as management reporting, queries, decision support systems, and executive information systems.

Decision Support

A Decision Support System (DSS) is a system that provides managers with information they need to make decisions. These systems have the effect of empowering employees at all levels, providing them access to business and financial information that directly impact their productivity and quality of work

Executive information systems

An Executive information system (EIS) is a concise snapshot of how the company is doing today. Consider it as an electronic executive briefing. EIS allows greater flexibility in “slicing-and-dicing” data, i.e.; it allows exploration of data through multiple dimensions or views.

Why Datawarehouse?

By centralizing data

The queries can be answered locally without accessing the original information sources. Thus, high query performance can be obtained for complex aggregation queries that are needed for in-depth analysis, decision support and data mining – a way of extracting relevant data from a vast database.
On-line Analytical Processing (OLAP) is decoupled (separated) as much as possible from On-line Transaction Processing (OLTP). Thus making information accessible to decision makers avoiding interference of OLAP with local processing at the operational sources.

Data warehouse

A decision support database that is maintained separately from the organization’s operational databases
A Data Warehouse is an enterprise-wise collection of
Subject oriented
Integrated
Time variant
Non-volatile

data in support of management’s decision making process.

- W. H. Inmon, 1993

*Subject Oriented - Data warehouses focuses on high-level business entities like sales,marketing,etc.

*Integrated - Data in the warehouse is obtained from multiple sources and kept in a consistent format.

*Time-Varying - Every data component in the date warehouse associates itself with some point of time like weekly,monthly,quarterly, yearly

*Non-volatile - Dw stores historical data. Data does not change once it gets into the warehouse. Only load/refresh.

Data from the operational systems are

Extracted
Cleansed
Transformed

case conversion,
data trimming,
concatenation,
datatype conversion

Aggregated
Loaded into DW
Periodically refreshed to reflect updates at the sources and purged from the warehouse onto slower archival storage.

Use of DWH

Ad-hoc analyses and reports
Data mining: identification of trends
Management Information Systems

Designing a database for a Data Warehouse

Define User requirements, considering different views of users from different departments.
Identify data integrity, synchronization and security issues/bottlenecks.
Identify technology, performance, availability & utilization requirements.
Review normalized view of relational data to identify entities.
Identify dimensions.
Create and organize hierarchies of dimensions.
Identify attributes of dimensions.
Identify fact table(s).
Create data repository (metadata).

10.Add calculations.

Datamart

Datamart is a subset of data warehouse and it is designed for a particular line of business, such as sales, marketing, or finance.
In a dependent data mart, data can be derived from an enterprise-wide data warehouse.
In an independent data mart, data can be collected directly from sources
May be structured for specific access tools Datamart is the data warehouse you really use Why Datamart?

Datawarehouse projects are very expensive and time taking.
Success rate of DWH projects is very less

To avoid single point of loss we identify department wise needs and build Datamart. If succeeded we go for other departments and integrate all datamarts into a Datawarehouse.

Advantages

Improve data access performance
Simplify end-user data structures
Facilitate ad hoc reporting

Slno	Data warehouse	Data mart
1.	DW Operates on an enterprise level and contains all data used for reporting and analysis	Data Mart is used by a specific business department and is focused on a specific subject (business area).
			DM is a subset of DWH

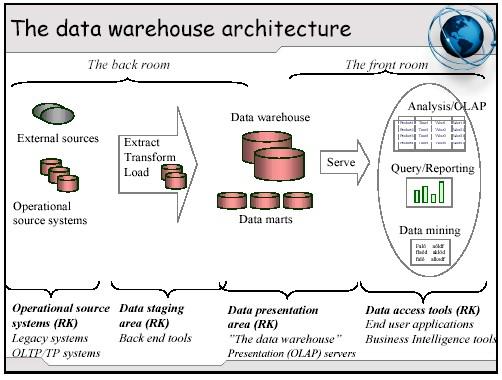

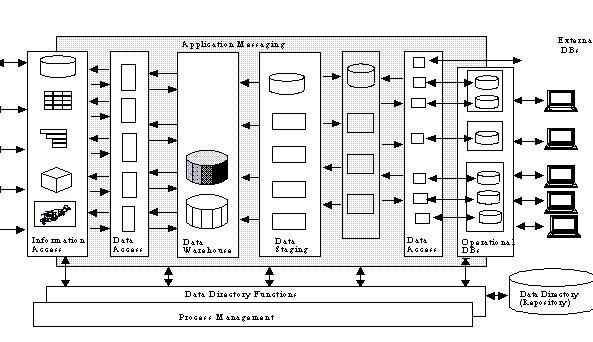

DWH ARCHITECHTURE

Data warehouse architecture is a way of representing the overall structure of data, communication, processing and presentation that is planned, for end-user computing within the enterprise. The architecture has the following main parts:

Operational data base
Information access layer
Data Access layer
Data dictionary (metadata) layer
Process management layer
Application messaging layer
Processing (Data Warehouse) layer
Data Staging layer

Operational data is the information related to day-to-day functioning of an organization. An operational database stores business transactions critical to the functioning of the organization.

Information access layer is the layer that the end-user deals with directly. Examples of these are ad-hoc query tools like Business Objects, Power Play and Impromptu.

Data access layer is the data interchange layer. This layer provides interface between operational data bases and information access layers. The common data language used is ‘SQL’. A familiar example of a data access layer is ‘ODBC’.

Metadata layer holds a repository of Metadata information. Metadata is defined as data about data, resulting in an intelligent, efficient way to manage data. Metadata provides the structure and content of the data warehouse, source and mapping information, transformation / integration description and business rules. It is essential for quality improvement in a Data Warehouse.

Process management layer is involved in scheduling the various tasks that must be executed to build and maintain the data warehouse and data repository. It also helps to keep the Data Warehouse up-to-date.

Application messaging layer transports information around the enterprises’ computing network. It also acts as ‘middle-ware’ and isolates applications from exact data format on either end.

Processing (data warehouse) layer is the logical view of the informational data. It also performs the summarization, loading and processing of data from operational databases.

Data staging layer manages data replication across servers. It also manages data transformation.

ETL

ETL means Extraction, transformation, and loading.
ETL refers to the methods involved in accessing and manipulating source data and loading it into target database.

ETL Process

Etl is a process that involves the following tasks:

extracting data from source operational or archive systems which are the primary source of data for the data warehouse
transforming the data - which may involve cleaning, filtering, validating and applying business rules
loading the data into a data warehouse or any other database or application that houses data

Transform

Denormalize data
Data cleaning.
Case conversion
Data trimming
String concatenation
datatype conversion
Decoding
calculation 9. Data correction.

Cleansing

The process of resolving inconsistencies and fixing the anomalies in source data, typically as part of the ETL process.

Data Staging Area

Most complex part in the architecture.
A place where data is processed before entering the warehouse
It involves...

Extraction (E)
Transformation (T)
Load (L)
Indexing

Popular ETL Tools

Tool Name	Company Name
Informatica	Informatica Corporation
DT/Studio	Embarcadero Technologies
DataStage	IBM
Ab Initio	Ab Initio Software Corporation
Data Junction	Pervasive Software
Oracle Warehouse Builder	Oracle Corporation
Microsoft SQL Server Integration	Microsoft
TransformOnDemand	Solonde
Transformation Manager	ETL Solutions

Dimensional Modeling

Means storing data in fact and dimension tables.
Here data is fully denormalized

Dimension table

Dimension table gives the descriptive attributes of a business.
They are fully denormalized
It has a primary key
Data arranged in hierarchical manner (product to category; month to year) – if so we can use for drill down and drill up analysis
Has less no. of records
Has rich no. of columns
Heavily indexed
Dimension tables are sometimes called lookup or reference tables.

Types of Dimensions

Normal Dimension
Confirmed Dimension
Junk Dimension
Degenerated Dimension
Role Playing Dimension

Confirmed Dimension

Dimension table used by more than one fact table is called Confirmed Dimensions

(dimensions that are linked to multiple fact tables)

D1 D2 D1 D2 D5

Adv:

To avoid unnecessary space
Reduce time
Drill across fact table

Junk Dimension

is an abstract dimension it will remove number of foreign keys from fact table. This is achieved by combining 2 or more dimensions into a single dimension.

Degenerated Dimension

Means a key value or dimension table which does not have descriptive attributes. i.e.) a non foreign key and non numerical measure column used for grouping purpose

Ex : Invoice Number, Ticket Number

Role Playing Dimension

Means a single physical dimension table plays different role with the help of views.

Fact Table

1. The centralized table in a star schema is called as FACT table 2. A fact table typically has two types of columns:

Numerical measures and
Foreign keys to dimension tables.

The primary key of a fact table is usually a composite key that is made up of all of its foreign keys
Fact tables store different types of measures like

additive,
non additive and
semi additive measures

A fact table might contain either detail level facts or facts that have been aggregated
A fact table usually contains facts with the same level of aggregation.
Has millions of records

Measure Types

Additive - Measures that can be summarized across all dimensions. o Ex: sales
Non Additive - Measures that cannot be summarized across all dimensions. o Ex: averages
Semi Additive - Measures that can be summarized across few dimensions and not with others.

o Ex: inventory levels

Factless Fact

A fact table that contains no measures or facts is called as Factless Fact table.

Slowly Changing Dimensions

Dimensions that change over time are called Slowly Changing Dimensions
Slowly Changing Dimensions are often categorized into three types namely

Type1,
Type2 and
Type3

Type 1 SCD :

Used if history is not required Overwriting the old values.

Product Price in 2004:

Product ID(PK)	Year	Product Name	Product Price
1	2004	Product1	$150

Product Price in 2005:

Product ID(PK)	Year	Product Name	Product Price
1	2005	Product1	$250

Type 2 SCD:

If history and current value needed
Creating another additional record.(new record with new changes and new surrogate key)
Mostly preferred in dimensional modeling

Product

Product ID(PK)	Effective DateTime(PK)	Year	Product Name	Product Price	Expiry DateTime
1	01-01-2004 12.00AM	2004	Product1	$150	12-31-2004 11.59PM
1	01-01-2005 12.00AM	2005	Product1	$250

Type 3 SCD:

Used if changes are very less Previous one level of history available Creating new fields. Product Price in 2005

Product ID(PK)	Current Year	Product Name	Current Product Price	Old Product Price	Old Year
1	2005	Product1	$250	$150	2004

Surrogate keys

Surrogate keys are always numeric and unique on a table level which makes it easy to distinguish and track values changed over time.
Surrogate keys are integers that are assigned sequentially as needed to populate a dimension.
Surrogate keys merely serve to join dimensional tables to the fact table.
Surrogate keys are beneficial as the following reasons:

Reduces space used by fact table
Faster retrieval of data ( since alphanumerical retrieval is costlier than numerical data)
Maintaining index is easier with numeric key.
Maintain all slowly changing dimenion.

Data warehouse Design

The data warehouse design essentially consists of four steps, which are as follows:

Identifying facts and dimensions
Designing fact tables
Designing dimension tables
Designing database schemas

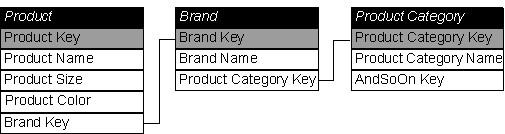

Types of database schemas

There are three main types of database schemas:

1. Star Schema, 2. Snowflake Schema and

3. Starflake schema.

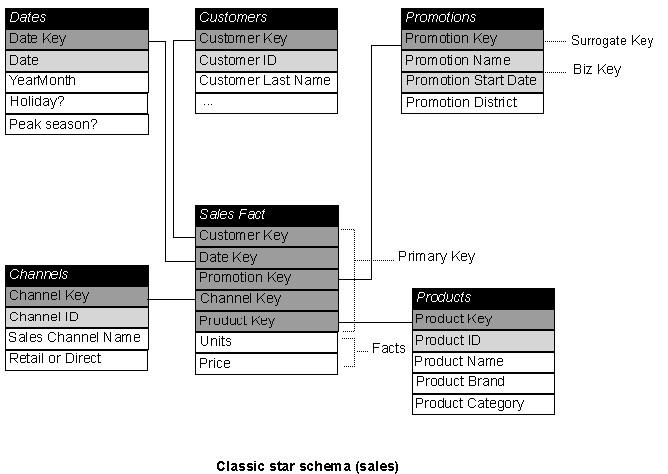

Star Schema

It is the simplest form of data warehouse schema that contains one or more dimensions and fact tables
It is called a star schema because the entity-relationship diagram between dimensions and fact tables resembles a star where one fact table is connected to multiple dimensions
The center of the star schema consists of a large fact table and it points towards the dimension tables
Fact Table = Highly Normalized Dimension Table = Highly denormalized.
It can be very effective to treat fact data as primarily read-only data, and dimensional data as data that will change over a period of time

Advantages:

Star schema is easy to define.
It reduces the number of physical joins.
Provides very simple metadata.

Drawbacks:

Summary data in Fact tables (such as Sales amount by region, or district-wise, or yearwise) yields poor performance for summary levels and huge dimension tables.

Steps in designing Star Schema

Identify a business process for analysis (like sales).
Identify measures or facts (sales dollar).
Identify dimensions for facts (product dimension, location dimension, time dimension, organization dimension).
List the columns that describe each dimension. (Region name, branch name, employee name).
Determine the lowest level of summary in a fact table (sales dollar).

Fact constellation:

Dimension tables will, in turn, have their own dimension tables. In this case, the Store dimension will contain District ids and Region ids, which will reference district and region dimensions of Store dimension, respectively. This Schema is called Fact Constellation Schema.
